Delay Tank & Dosing Platform — Process System Reconstruction
This case documents the evidence-correlated reconstruction of a historical delay-tank installation and its adjacent process-vessel context.
CASE STUDY VISUAL
Historical evidence + controlled reconstruction
Evidence Basis

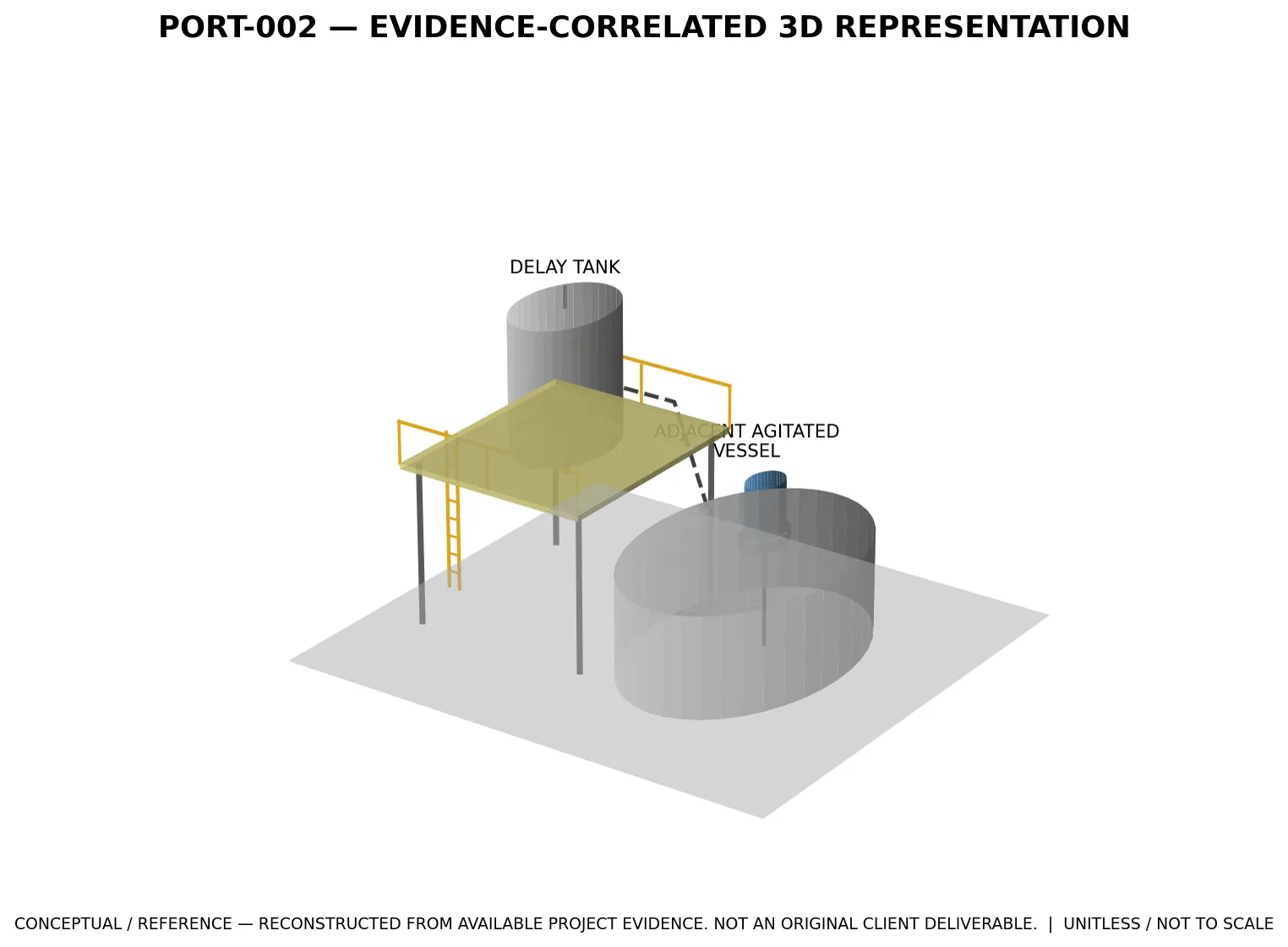

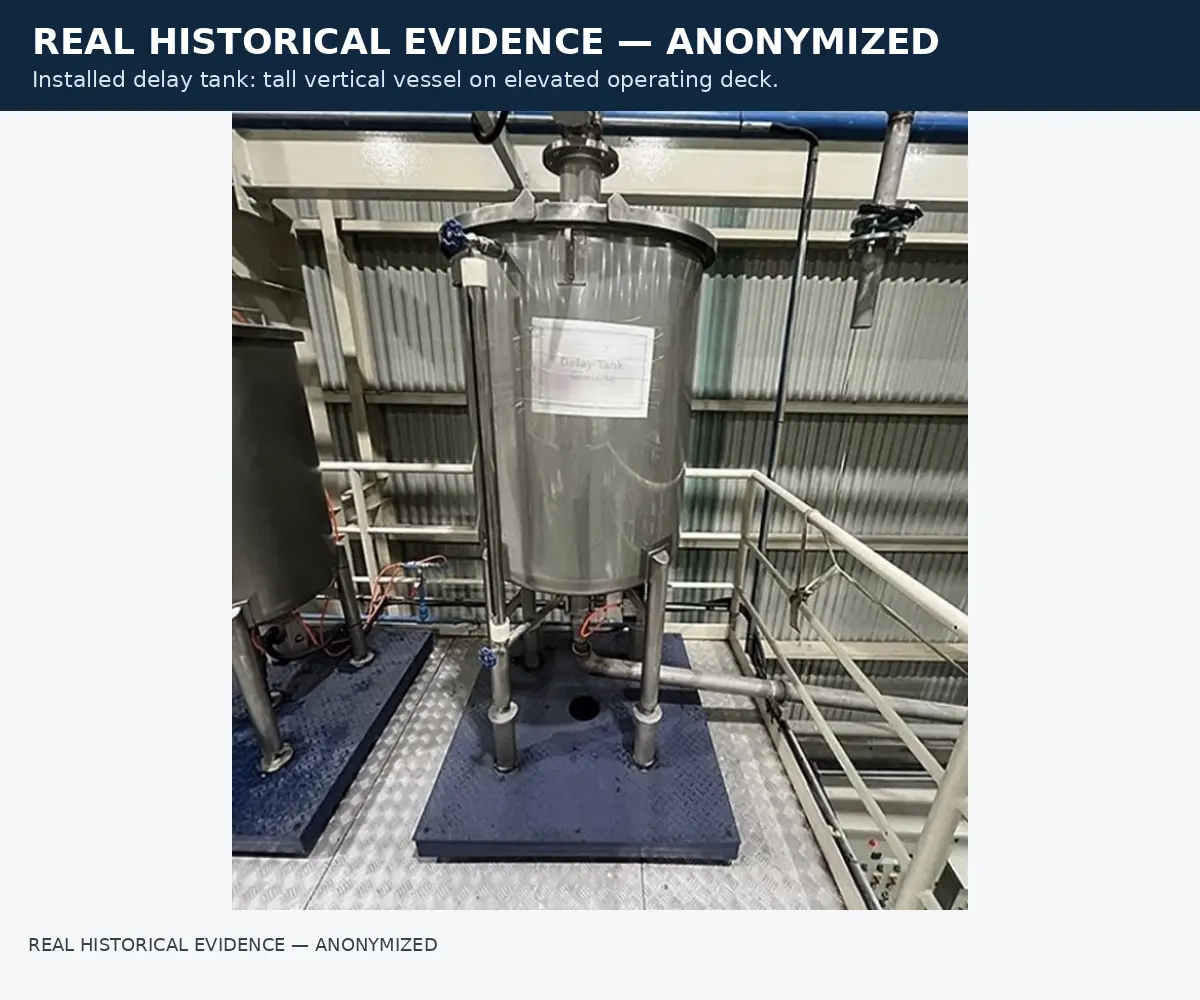

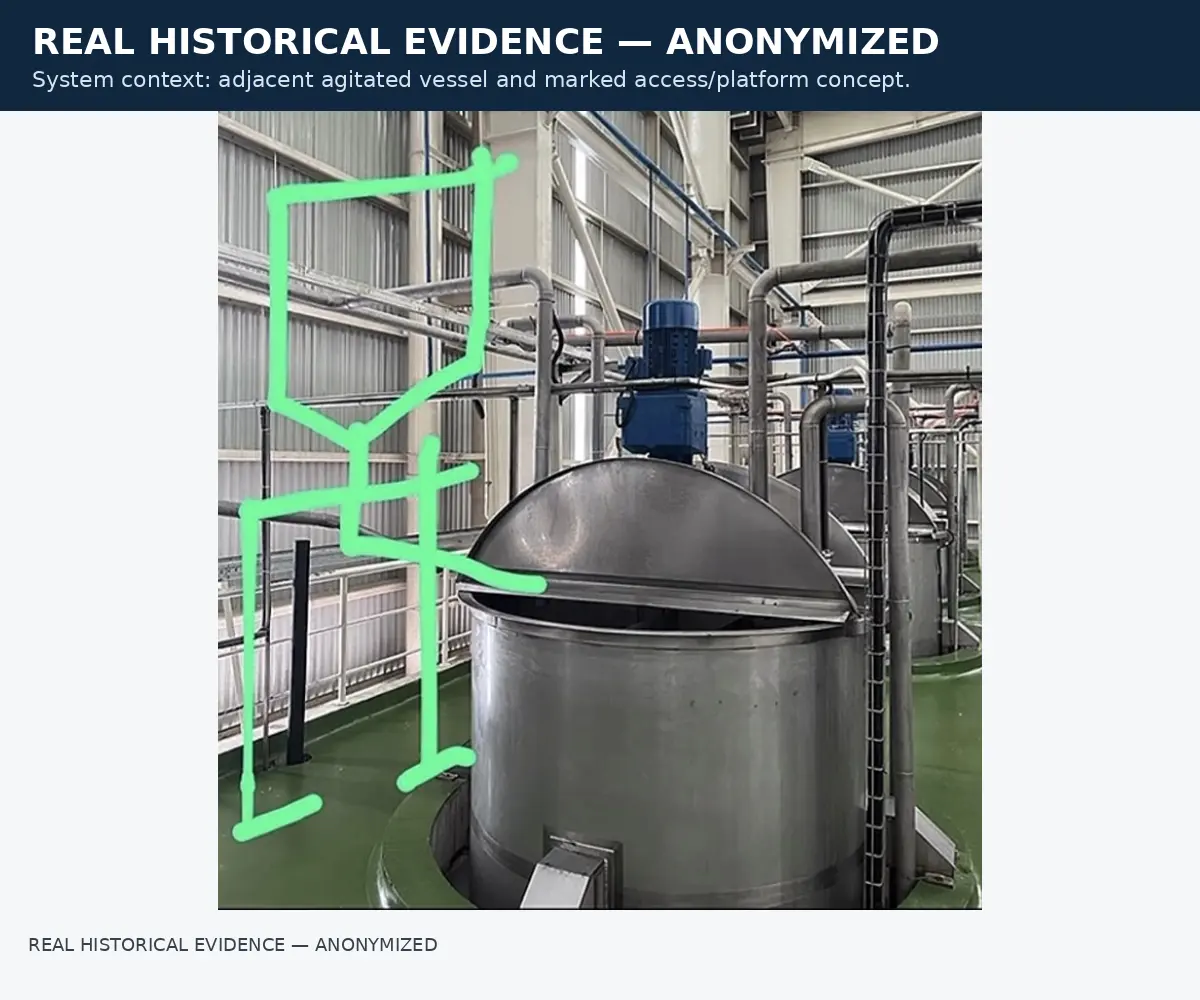

The available evidence supports a tall, narrow delay tank on an elevated operating/access level, with a separate adjacent vessel carrying the visible motor/gearbox and agitation arrangement.
Public Presentation

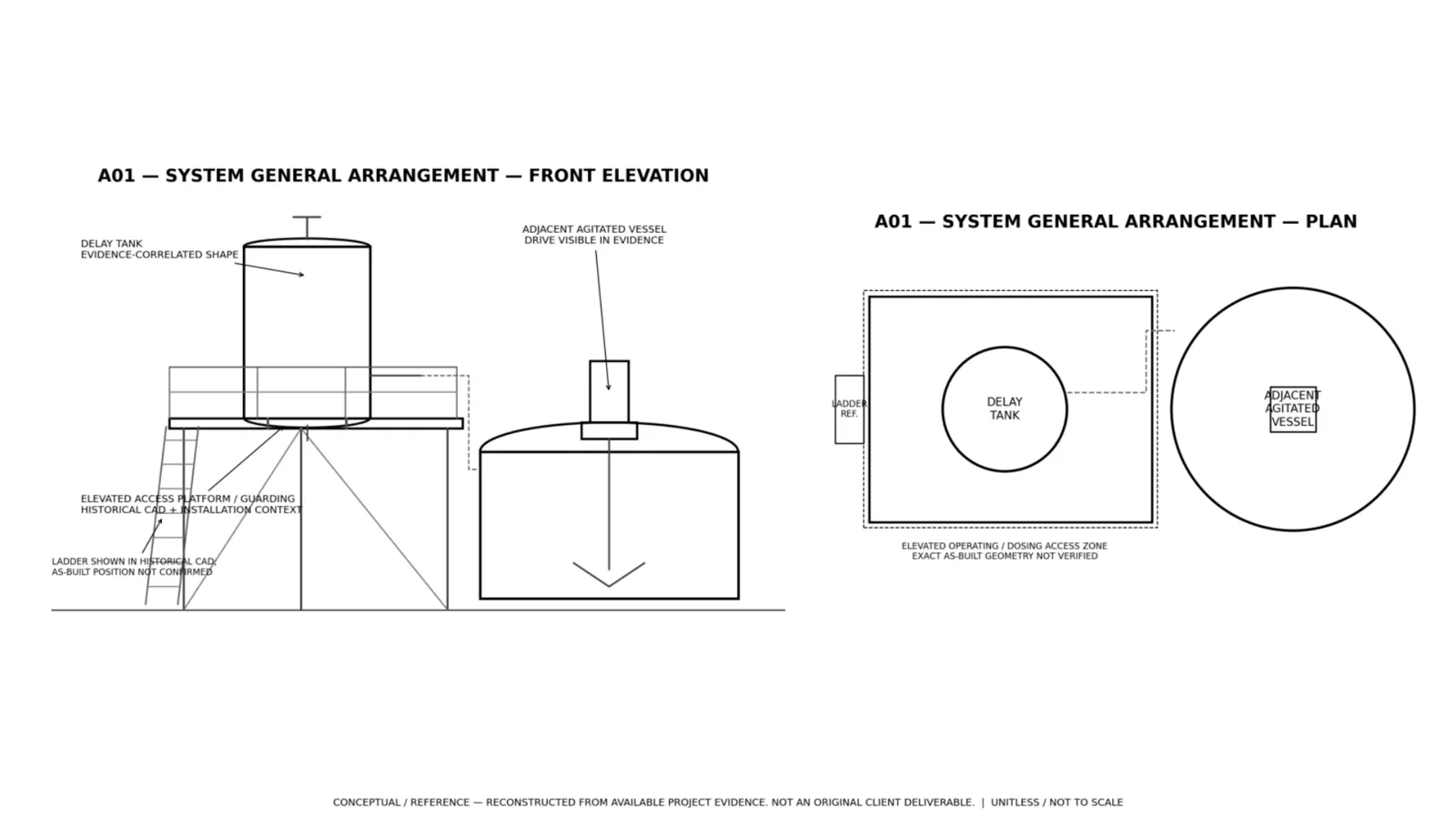

The public case-study sequence moves from anonymized historical evidence through controlled 2D reconstruction, 3D development, qualitative process visualization, and final evidence correlation.
Technical Interpretation
The delay tank is represented separately from the adjacent agitated process vessel. Elevated decking and guardrail are visible in the historical context. Historical CAD supports platform/ladder provisions; exact as-built ladder geometry is not independently confirmed. Generalized piping relationships may be shown, but exact line identities, directions, sizes and operating values are not established. The process visualization is conceptual/reference only and does not represent measured operating performance.
Control Statement
CONCEPTUAL / REFERENCE — RECONSTRUCTED FROM AVAILABLE PROJECT EVIDENCE. NOT AN ORIGINAL CLIENT DELIVERABLE. No claim is made regarding exact dimensions, flow rate, residence time, mixer speed or power, material grade, structural capacity, pressure rating, CIP performance, anchorage rating, code compliance or certification.
APPROVED PUBLIC VISUALS
Evidence and reconstruction sequence
RECONSTRUCTED FROM AVAILABLE PROJECT EVIDENCE. NOT AN ORIGINAL CLIENT DELIVERABLE.
No claim is made regarding exact dimensions, flow rate, residence time, mixer speed or power, material grade, structural capacity, pressure rating, CIP performance, anchorage rating, code compliance or certification.
